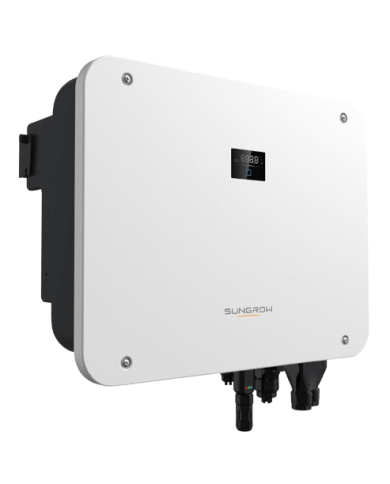

Sungrow SH20T
Hybrid WR, 3 MPPT, 3 phase

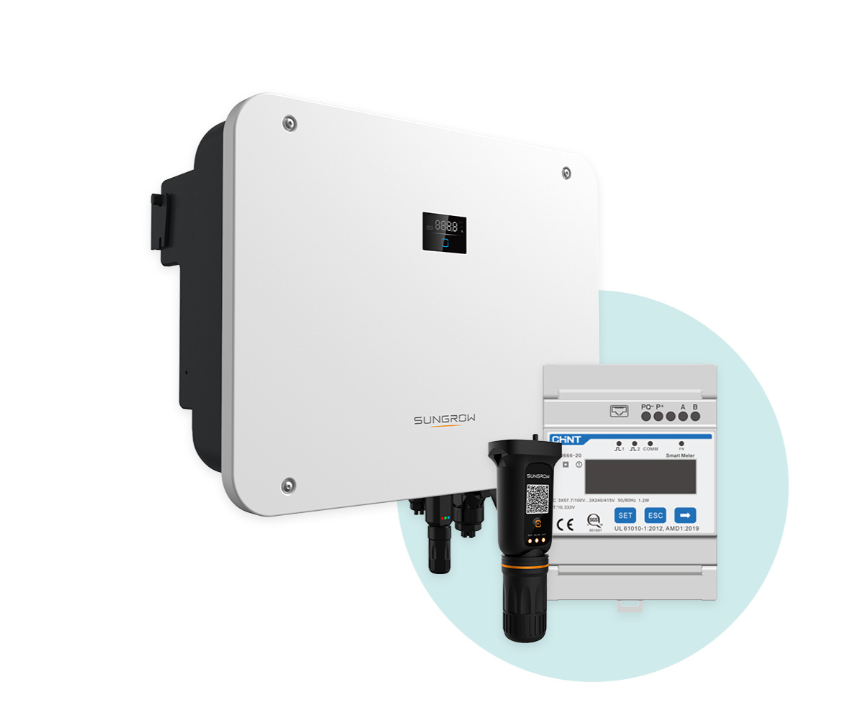

Sungrow energy meter and winet-dongle are included in this article.
Our reference- 145530
|
Technical information |
|
| Watt |
20,000
|
| AC | 20,000 VA |
| DC | 40,000 W |
| Efficiency |
98.10% |
| Phase |
3-phase |
| MPPT |
3 |
| AC grid voltage (V): | 220V, 230V, 240V, 380V, 400V, 415V |
| Inverter type | hybrid inverter, string inverter |
|
Enclosure protection |
IP65 |
| Topology | transformerless |
|
Dimensions |
620 x 480 x 245 mm |
|
Weight |
38kg |
Product information
Hybrid inverter for high-voltage batteries (Sungrow SBR/SBH)
Incl. AC and DC overvoltage protection, type II -
Floating contact for controlling consumers (e.g. SGReady heat pumps)
WLAN/LAN combination dongle
DC circuit breaker according to VDE AR-N-4105:2018-11
for grid connection
Protection class: IP65 Euro efficiency: 97.6%
Height x width x depth 620/480/245 mm
Maximum DC power: 40,000 W
Nominal power: 20,000 W AC
Maximum DC voltage: 1000 V
incl. display For use with Sungrow SBH high-voltage batteries Backup function (max 3 phase 20000W)
For backup functionality, Sungrow recommends at least the SBR160 battery.
Energy meter included 10-year warranty
Please note the country-specific service and warranty conditions of the manufacturer.
