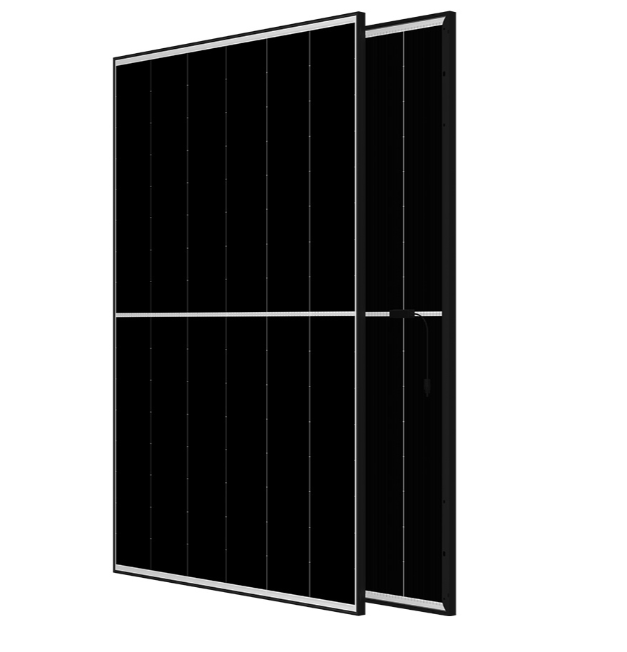

AIKO A475-MCE54Db
bifacial, glas/glas, fullblack, Neostar 3S+54
Article No: 148973
Technical information |
|
| Length (mm) | 1,762 |
|
Height (mm)
|
30 |
| Width (mm) | 1,134 |
| Weight (kg) | 24.50 |
| Type of DC-connector | EVO2 |
| Module Efficiency (%) | 23.30 |
| Cell technology | advanced ABC (All-Back-Contact) |
| Current value String fuse (A) | 30 |
| Frame Colour | BLACK |
| Nominal Power [Wp] | 475 |
| Power/area [Wp/m²] | 237.72 |
| max. System Voltage (V) | 1,500 |
| Number of cells | 108 |
| Length of connecting cable (m) | 1.20 |
| Module design | HALF CELL |
| Warranty | 30 years |
The AIKO MCE54-DB is a glass-glass solar module from the Neostar 3S+ series with an output of 460–490 W and an efficiency of up to 24.5%. It uses advanced N-type ABC technology, which ensures high efficiency, optimized performance in partial shade, and improved temperature stability. Thanks to its robust double glass, black aluminum frame, and elegant full-black design, it offers maximum durability and an aesthetic solution for demanding PV systems.
Modul-Technology
ABCABC (All-Back-Contact) technology relocates all electrical contacts to the rear of the solar cell, leaving the front completely free of metallic conductors and allowing more light to be absorbed. This reduces internal resistance, increases efficiency, and improves low-light performance and temperature stability.
Warranty
The AIKO MAH54-DB offers a 25-year product warranty and a 30-year linear performance warranty. Degradation is very low: maximum ≤1% in the first year and then ≤0.35% per year, ensuring high energy yields in the long term.
