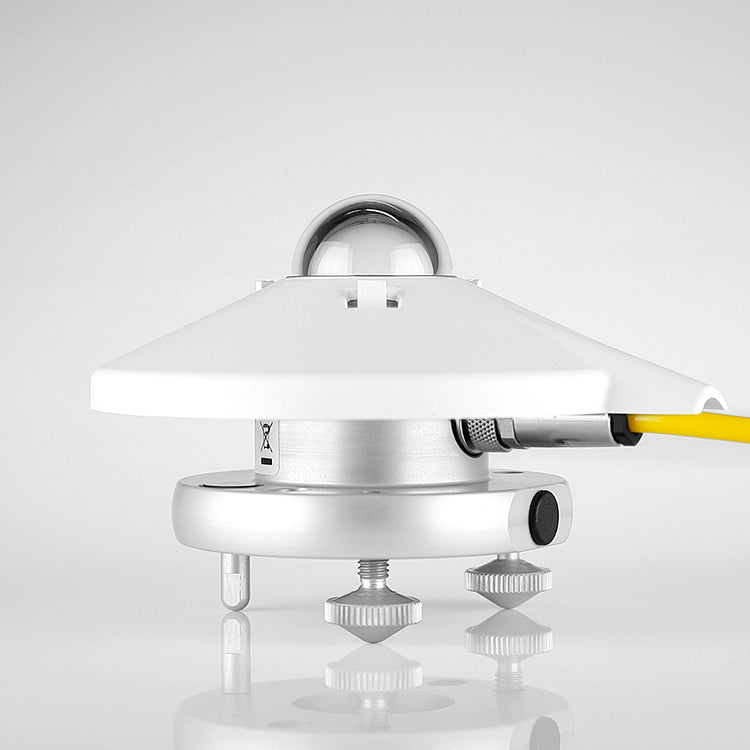

Pyranometer Kipp&Zonen CMP 3, without cable
![]()
Article No: 14999610
|
Technical information |
|
| Sensor type | measuring the solar irradiance |
| Temperature dependence of sensitivity (-10 ºC to +40 ºC) | < ±4 % |
| Spectral range (50% points) | 300 to 2800 nm |
| Sensitivity | 24 to 32 µV/W/m² |
| Response time | < 20 s |
| Zero offset A | < ±15 W/m² |
| Zero offset B | < ±5 W/m² |
| Directional response (up to 80° with 1000 W/m² beam) | < ±20 W/m² |
| Operational temperature range | -40 °C to +80 °C |
| Maximum solar irradiance | 2000 W/m² |
| Field of view | 180 ° |
Cable order link
1- Cable for Pyranometer Kipp&Zonen CMP, 10 m cable pre - wired with plug
CMP3 Pyranometer
The CMP3 pyranometer is an instrument for measuring the solar irradiance. The thermopile sensor construction measures the solar energy that is received from the total solar spectrum and the whole hemisphere (180 degrees field of view). The output is expressed in Watts per meter square. The CMP3 pyranometer is designed for continuous indoor and outdoor use.
