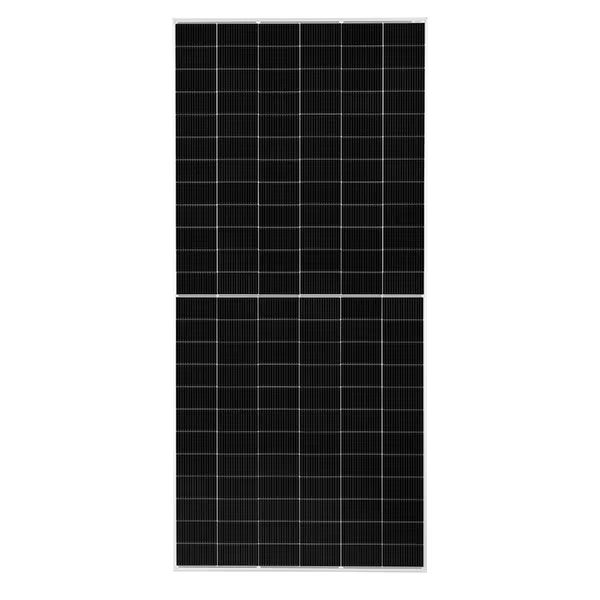

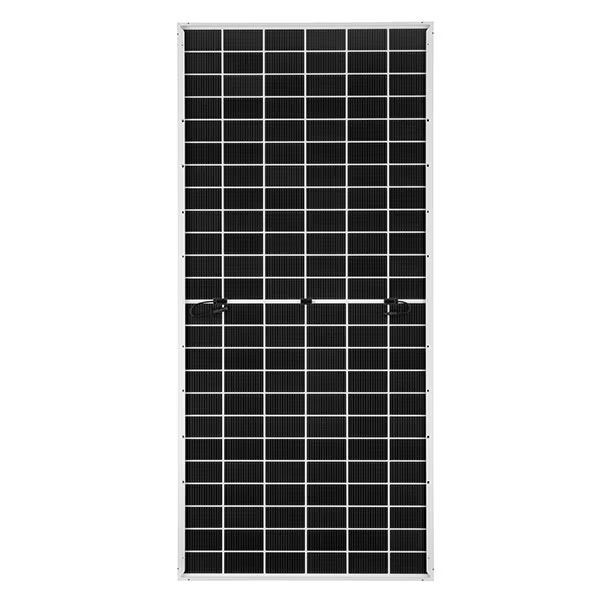

JA Solar 630 W Deep blue 4.0 Silver Frame N-Type Bifacial Dual Glass (JAM72D42-630/LB)
1499114
- Price Excl. Tax
- In stock, ready to ship
JA Solar 630 W Deep blue 4.0 Silver Frame N-Type Bifacial Dual Glass (JAM72D42-630/LB)
Article No: 1499114
Manufacturers part number JAM72D42-630/LB
Technical information |
: |
| Module type | Bifacial Framed |
| Watt | 630 |
| Module surface (m²) | 2,795 |
| Watt/m² | 225,0 |
| Cell | Half-cut |
| Number of cells | 144 (72) |
| Cell Technology | TOPCon N-Type |
| Temp. Coef PMAX |
-0,29%/K |
| Wafer Size |
M10 (182mm) |
| Module efficiency |
22,5% |
| Glass Type |
Dual Glass |
| Panel frame colour | Silver |
| Panel backsheet type | White Tedlar |
| Dimensions | 246,5 x 113,4 x 3,0 cm |
| Weight | 34.6kg |
| Cable length + | 1 500mm - MC4-EVO2 connectors |
| Cable length - | 1 500mm - MC4-EVO2 connectors |
| Junction box | Standard - Top |
| Product warranty | 12 years |
| Performance warranty | 87,4% after 30 years |
| Module packaging |
36,0 per pallet |
