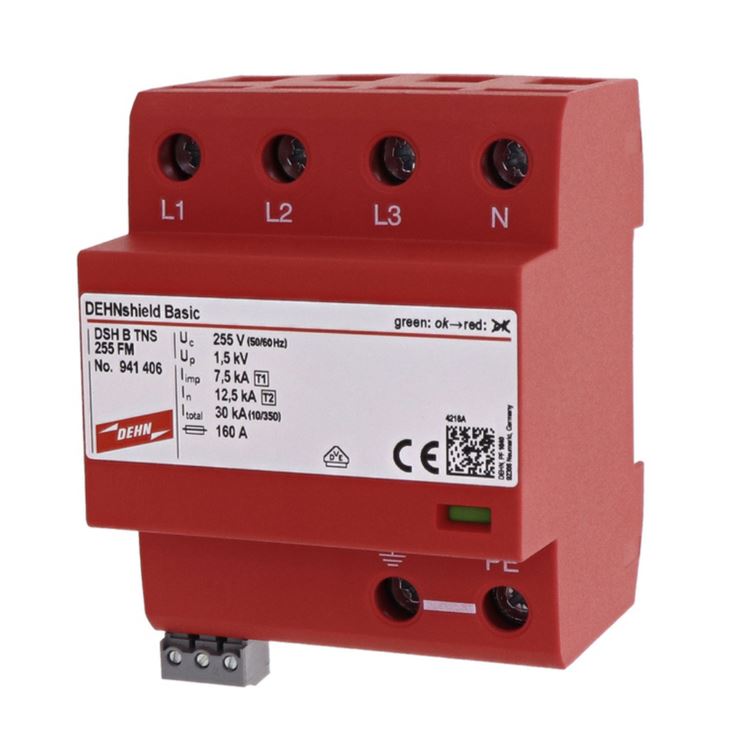

DEHNshield Basic TNS 255 FM SPD Type 1 + Type 2
Article Number: 149940
Product Description
DEHNshield B TNS 255 FM (941406)
4-pole combined arrester for 230/400 V TN (C) -S systems,
4HP width, with remote signaling contact
Arrester type 1 + type 2 according to EN 61643-11
Meets all requirements of DIN VDE 0100-534 and DIN VDE 0100-443
Spark gap technology with follow current limitation
Defect display
Maximum continuous voltage: 255 V AC
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 30 kA
Energy coordination according to DIN EN 62305-4
Arrester of the Red / Line family, as well as directly to the end device
